Medium Duty Yoke Clamp

Material	: Mild Steel
Finish	: HDG

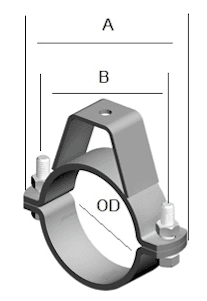

Part Number	Pipe OD(mm)	A (mm)	B (mm)	Width x Thickness (mm)	Bolt	weight
S18-060H	60	154	114	40 x 6	M12 x 45 mm	1.00
S18-064H	64	158	118	40 x 6	M12 x 45 mm	1.00
S18-076H	76	170	130	40 x 6	M12 x 45 mm	1.01
S18-089H	89	183	143	40 x 6	M12 x 45 mm	1.07
S18-102H	102	196	156	40 x 6	M12 x 45 mm	1.16
S18-114H	114	210	170	40 x 6	M12 x 45 mm	1.25
S18-127H	127	221	181	40 x 6	M12 x 45 mm	1.33
S18-140H	140	234	194	40 x 6	M12 x 45 mm	1.41
S18-152H	152	246	206	40 x 6	M12 x 45 mm	1.45
S18-165H	165	259	219	40 x 6	M12 x 45 mm	1.54
S18-178H	178	272	232	40 x 6	M12 x 45 mm	1.59
S18-203H	203	297	257	40 x 6	M12 x 45 mm	1.76
S18-219H	219	313	273	40 x 6	M12 x 45 mm	1.90
S18-230H	230	324	284	40 x 6	M12 x 45 mm	1.96
