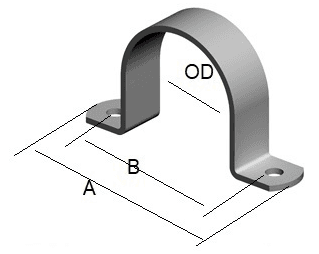

Medium Duty Single Saddle Clamp

Material	: Mild Steel
Finish	: HDG

Part Number	Pipe OD (mm)	A (mm)	B (mm)	Width x Thickness (mm)	Weight (kg)
S15-021H	21	115	75	40 x 5	0.18
S15-027H	27	121	81	40 x 5	0.19
S15-034H	34	128	88	40 x 5	0.27
S15-043H	43	137	97	40 x 5	0.25
S15-048H	48	142	102	40 x 5	0.26
S15-051H	51	145	105	40 x 5	0.29
S15-060H	60	154	114	40 x 5	0.39
S15-076H	76	170	130	40 x 5	0.46
S15-089H	89	183	143	40 x 5	0.52
S15-102H	102	196	156	40 x 5	0.56
S15-114H	114	210	170	40 x 6	0.60
S15-140H	140	236	196	40 x 6	0.73
S15-152H	152	248	208	50 x 6	1.00
S15-165H	165	261	221	50 x 6	1.11
S15-168H	168	264	224	50 x 6	1.18
S15-203H	203	299	259	50 x 6	1.32
S15-219H	219	315	275	50 x 6	1.48
S15-254H	254	350	310	50 x 6	1.71
