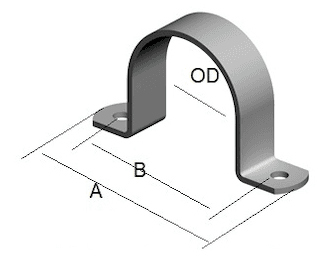

Light Duty Single Saddle Clamp
| Material | : Mild Steel |
| Finish | : HDG |
| Part Number | Pipe OD (mm) | A (mm) | B (mm) | Width x Thickness (mm) | Weight (kg) |
|---|
| S4-016H | 16 | 80 | 56 | 25 x 3 | 0.06 |
| S4-019H | 19 | 83 | 59 | 25 x 3 | 0.06 |
| S4-021H | 21 | 85 | 61 | 25 x 3 | 0.06 |
| S4-025H | 25 | 89 | 65 | 25 x 3 | 0.07 |
| S4-027H | 27 | 91 | 67 | 25 x 3 | 0.07 |
| S4-032H | 32 | 96 | 72 | 25 x 3 | 0.08 |
| S4-034H | 34 | 98 | 74 | 25 x 3 | 0.08 |
| S4-038H | 38 | 102 | 78 | 25 x 3 | 0.09 |
| S4-043H | 43 | 107 | 83 | 25 x 3 | 0.10 |
| S4-048H | 48 | 112 | 88 | 25 x 3 | 0.11 |
| S4-051H | 51 | 115 | 91 | 25 x 3 | 0.11 |
| S4-060H | 60 | 124 | 100 | 25 x 3 | 0.13 |
| S4-064H | 64 | 128 | 104 | 25 x 3 | 0.13 |
| S4-073H | 73 | 137 | 113 | 25 x 3 | 0.15 |
| S4-076H | 76 | 140 | 116 | 25 x 3 | 0.15 |
| S4-089H | 89 | 153 | 129 | 25 x 3 | 0.17 |
| S4-095H | 95 | 159 | 135 | 25 x 3 | 0.18 |
| S4-102H | 102 | 166 | 142 | 25 x 3 | 0.19 |
| S4-114H | 114 | 178 | 154 | 25 x 3 | 0.21 |
| S4-127H | 127 | 191 | 167 | 25 x 3 | 0.23 |
| S4-140H | 140 | 204 | 180 | 25 x 3 | 0.25 |
| S4-152H | 152 | 216 | 192 | 25 x 3 | 0.27 |
| S4-165H | 165 | 229 | 205 | 25 x 3 | 0.30 |
| S4-170H | 170 | 234 | 210 | 25 x 3 | 0.31 |
| S4-190H | 190 | 254 | 230 | 25 x 3 | 0.34 |
| S4-220H | 220 | 284 | 260 | 25 x 3 | 0.37 |
