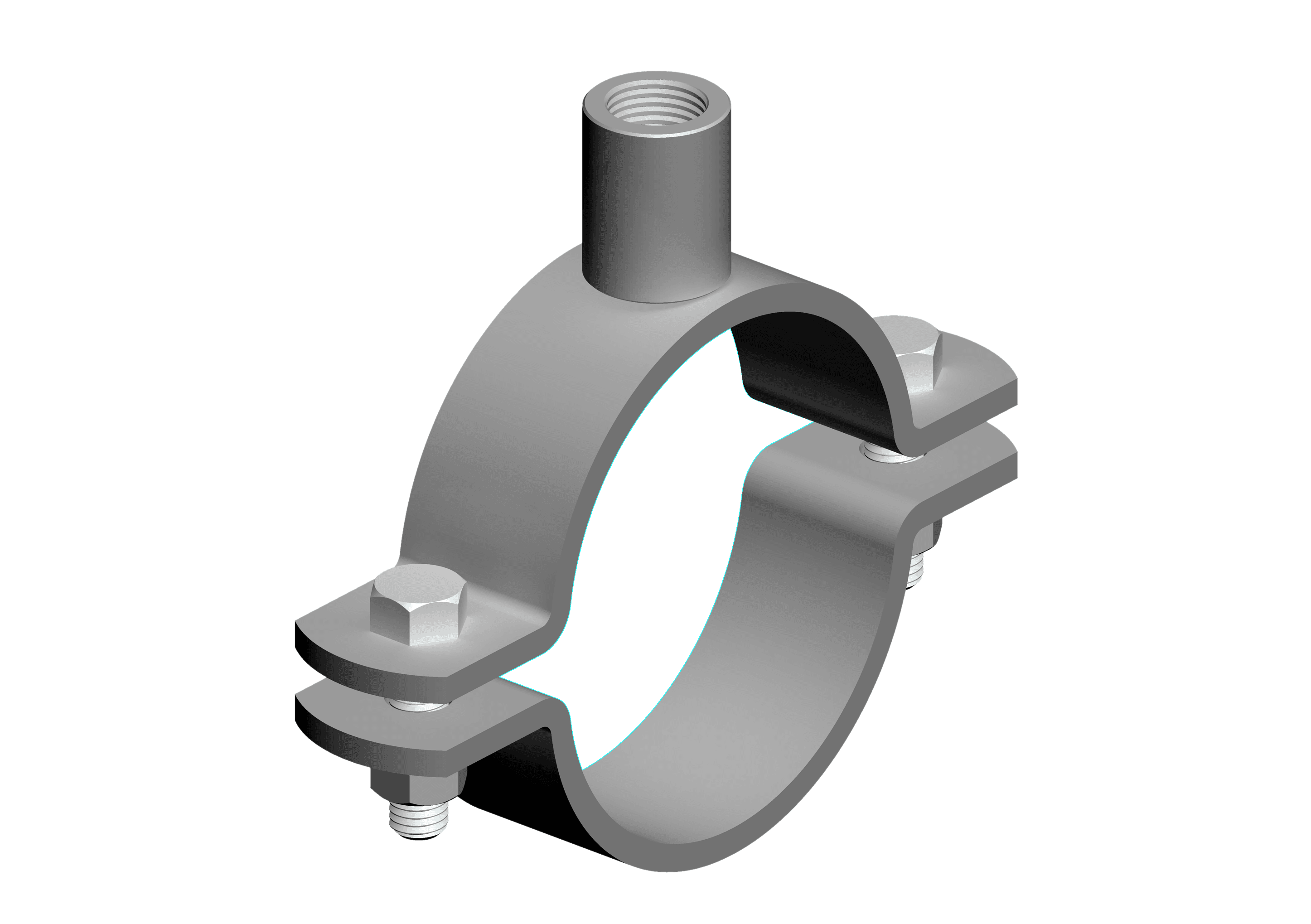

HDG Nut Clamp
| Material | : Mild Steel |
| Finish | : HDG |
| Part Number | Pipe OD (mm) | Nut Size | Width x Thickness (mm) | Weight (kg) |
|---|
| S7-015H | 21 | M10 | 20 x 3 | 0.12 |
| S7-020H | 27 | M10 | 20 x 3 | 0.13 |
| S7-025H | 34 | M10 | 20 x 3 | 0.14 |
| S7-032H | 43 | M10 | 20 x 3 | 0.15 |
| S7-040H | 48 | M10 | 20 x 3 | 0.16 |
| S7-050H | 60 | M10 | 20 x 3 | 0.18 |
| S7-065H | 76 | M10 | 20 x 3 | 0.21 |
| S7-080H | 89 | M10 | 20 x 3 | 0.25 |
| S7-100H | 115 | M10 | 20 x 3 | 0.29 |
| S7-125H | 140 | M10 | 25 x 3 | 0.40 |
| S7-150H | 165 | M10 | 25 x 3 | 0.45 |
| | | | | |
| S7-065-12H | 76 | M12 | 25 x 3 | 0.27 |
| S7-080-12H | 89 | M12 | 25 x 3 | 0.30 |
| S7-100-12H | 115 | M12 | 25 x 5 | 0.54 |
| S7-125-12H | 140 | M12 | 25 x 5 | 0.61 |
| S7-150-12H | 165 | M12 | 25 x 5 | 0.70 |
| S7-200-12H | 219 | M12 | 25 x 5 | 0.85 |
