Medium Duty Double Bolted Clamp

Material	: Mild Steel
Finish	: HDG

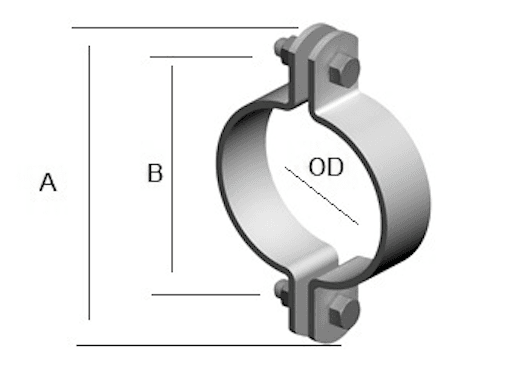

Part Number	Pipe OD (mm)	A (mm)	B (mm)	Width x Thickness (mm)	Weight (kg)
S16-048H	48	142	102	40 x 6	0.72
S16-051H	51	145	105	40 x 6	0.74
S16-060H	60	154	114	40 x 6	0.79
S16-064H	64	158	118	40 x 6	0.80
S16-073H	73	167	127	40 x 6	0.85
S16-076H	76	170	130	40 x 6	0.87
S16-083H	83	177	137	40 x 6	0.89
S16-089H	89	183	143	40 x 6	0.95
S16-102H	102	196	156	40 x 6	0.99
S16-114H	114	210	170	40 x 6	1.05
S16-127H	127	221	181	40 x 6	1.12
S16-140H	140	234	194	40 x 6	1.21
S16-152H	152	246	206	40 x 6	1.27
S16-165H	165	259	219	40 x 6	1.34
S16-178H	178	272	232	40 x 6	1.39
S16-190H	190	284	244	40 x 6	1.44
S16-203H	203	297	257	40 x 6	1.58
S16-219H	219	313	273	40 x 6	1.66
S16-230H	230	324	284	40 x 6	1.67
S16-240H	240	334	294	40 x 6	1.79
S16-250H	250	344	304	40 x 6	1.85
S16-273H	273	367	327	40 x 6	1.91
S16-304H	304	398	358	40 x 6	2.05
S16-315H	315	409	369	40 x 6	2.09
S16-324H	324	418	378	40 x 6	2.50
