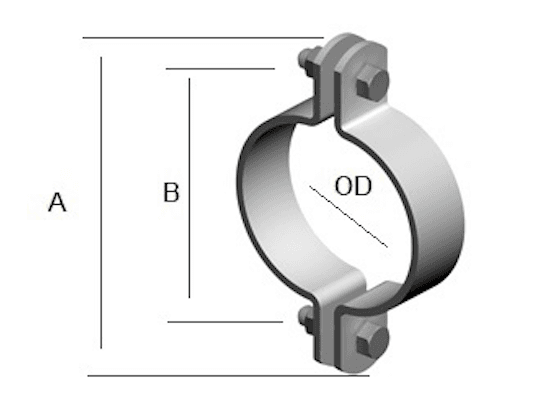

Light Duty Double Bolted Clamp

Material	: Mild Steel
Finish	: HDG

Part Number	Pipe OD (mm)	A (mm)	B (mm)	Width x Thickness (mm)	Weight (kg)
S6-019H	19	83	59	25 x 3	0.14
S6-021H	21	85	61	25 x 3	0.15
S6-025H	25	89	65	25 x 3	0.16
S6-027H	27	91	67	25 x 3	0.16
S6-032H	32	96	72	25 x 3	0.16
S6-034H	34	98	74	25 x 3	0.17
S6-038H	38	102	78	25 x 3	0.18
S6-043H	43	107	83	25 x 3	0.18
S6-048H	48	112	88	25 x 3	0.19
S6-051H	51	115	91	25 x 3	0.20
S6-060H	60	124	100	25 x 3	0.22
S6-064H	64	128	104	25 x 3	0.23
S6-073H	73	137	113	25 x 3	0.24
S6-076H	76	140	116	25 x 3	0.25
S6-089H	89	153	129	25 x 3	0.27
S6-102H	102	166	142	25 x 3	0.29
S6-114H	114	178	154	25 x 3	0.33
S6-127H	127	191	167	25 x 3	0.35
S6-140H	140	204	180	25 x 3	0.38
S6-152H	152	216	192	25 x 3	0.39
S6-165H	165	229	205	25 x 3	0.43
