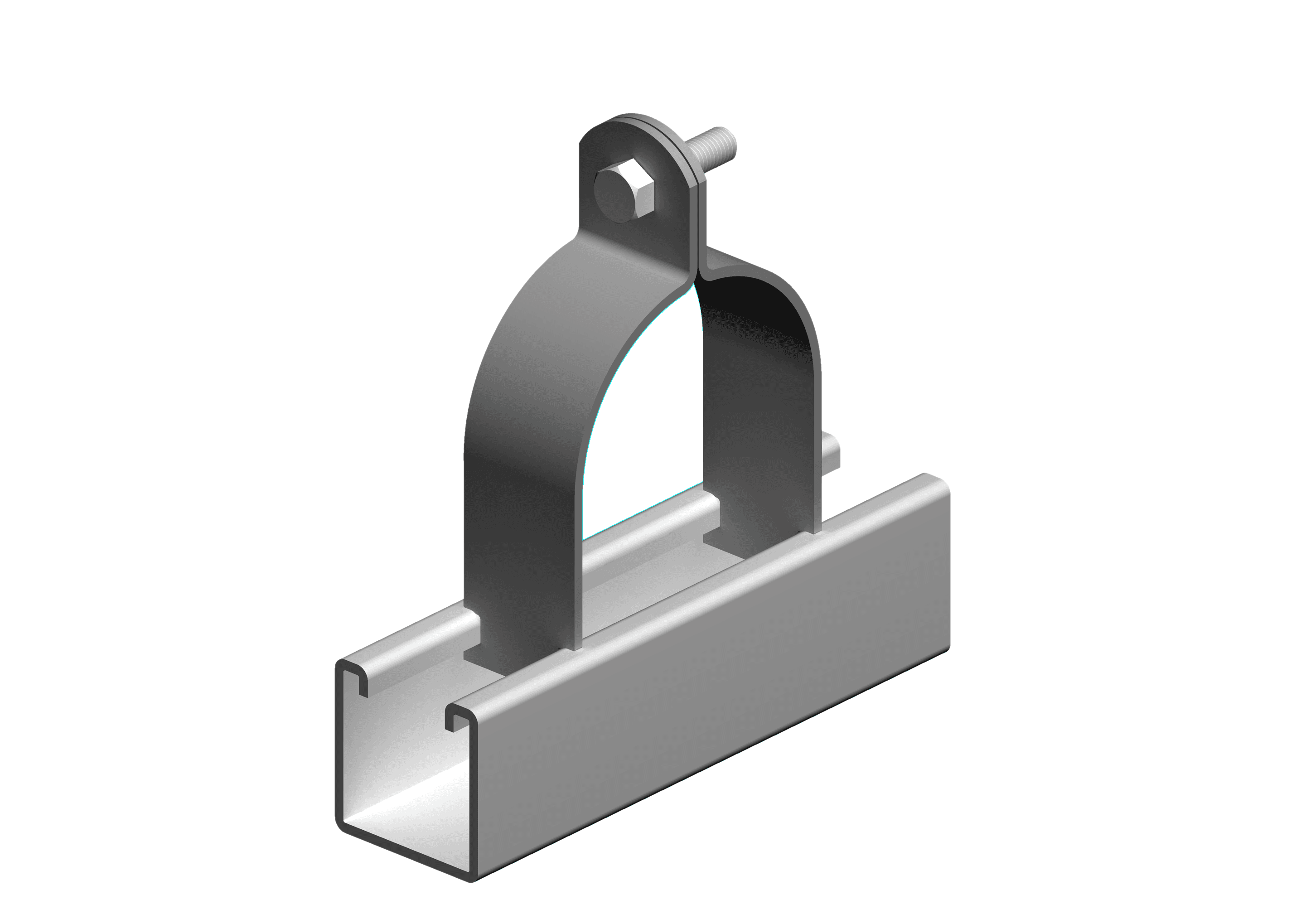

HDG 2 Piece Channel Pipe Clip

Material	: Mild Steel
Finish	: HDG

Part Number	Pipe OD (mm)	Width x Thickness (mm)	Weight (kg)
S5-008H	8	32 x 1.6	0.04
S5-011H	11	32 x 1.6	0.05
S5-014H	14	32 x 1.6	0.05
S5-017H	17	32 x 1.6	0.06
S5-019H	19	32 x 1.6	0.06
S5-021H	21	32 x 1.6	0.06
S5-022H	22	32 x 1.6	0.06
S5-025H	25	32 x 1.6	0.07
S5-027H	27	32 x 2.0	0.07
S5-029H	29	32 x 2.0	0.08
S5-032H	32	32 x 2.0	0.08
S5-035H	35	32 x 2.0	0.09
S5-038H	38	32 x 2.0	0.09
S5-042H	42	32 x 2.0	0.09
S5-043H	43	32 x 2.0	0.09
S5-044H	44	32 x 2.0	0.10
S5-048H	48	32 x 2.5	0.12
S5-049H	49	32 x 2.5	0.12
S5-050H	50	32 x 2.5	0.12
S5-051H	51	32 x 2.5	0.13
S5-054H	54	32 x 2.5	0.13
S5-057H	57	32 x 2.5	0.14
S5-060H	60	32 x 2.5	0.14
S5-064H	64	32 x 2.5	0.16
S5-067H	67	32 x 2.5	0.16
S5-070H	70	32 x 2.5	0.16
S5-073H	73	32 x 2.5	0.16
S5-076H	76	32 x 2.5	0.17
S5-079H	79	32 x 2.5	0.17
S5-083H	83	32 x 2.5	0.17
S5-086H	86	32 x 2.5	0.18
S5-089H	89	32 x 2.5	0.19
S5-090H	90	32 x 2.5	0.20
S5-092H	92	32 x 2.5	0.21
S5-095H	95	32 x 2.5	0.21
S5-098H	98	32 x 2.5	0.21
S5-102H	102	32 x 2.5	0.21
S5-105H	105	32 x 2.5	0.21
S5-108H	108	32 x 2.5	0.23
S5-111H	111	32 x 2.5	0.23
S5-114H	114	32 x 2.5	0.23
S5-117H	117	32 x 2.5	0.27
S5-121H	121	32 x 2.5	0.27
S5-127H	127	32 x 2.5	0.27
S5-133H	133	32 x 2.5	0.27
S5-140H	140	32 x 2.5	0.28
S5-146H	146	32 x 2.5	0.28
S5-152H	152	32 x 2.5	0.29
S5-159H	159	32 x 2.5	0.31
S5-165H	165	32 x 2.5	0.31
S5-171H	171	32 x 2.5	0.34
S5-178H	178	32 x 2.5	0.36
S5-191H	191	32 x 2.5	0.38
S5-203H	203	32 x 2.5	0.40
S5-216H	216	32 x 2.5	0.40
S5-220H	220	32 x 2.5	0.42
S5-228H	228	32 x 2.5	0.42
S5-240H	240	32 x 2.5	0.46
S5-252H	252	32 x 2.5	0.48
S5-268H	268	32 x 2.5	0.51
S5-275H	275	32 x 2.5	0.52
S5-302H	302	32 x 2.5	0.55
S5-315H	315	32 x 2.5	0.58
S5-324H	324	32 x 2.5	0.61
