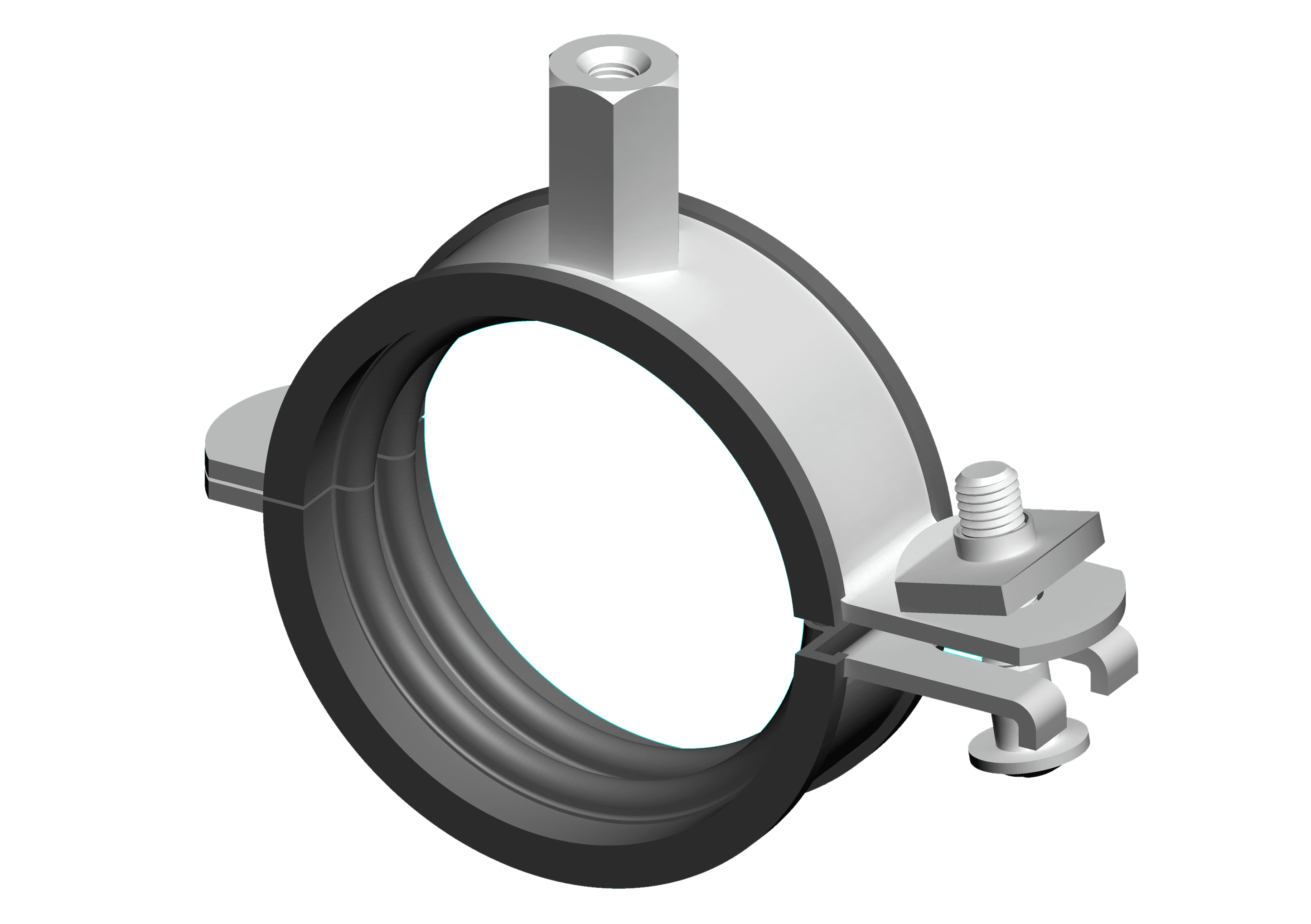

Single Bolted Acoustic Clamps
| Material | : Mild Steel |
| Rubber | : EPDM |
| Finish | : Zinc |
| Part Number | Pipe OD (mm) | Nut Size | Width x Thickness (mm) | Weight (kg) |
|---|
| S12-14Z | 12 - 14 | M8-M10 | 20 x 1.5 | 0.05 |
| S15-19Z | 15 - 19 | M8-M10 | 20 x 1.5 | 0.05 |
| S20-23Z | 20 - 23 | M8-M10 | 20 x 1.5 | 0.06 |
| S26-28Z | 26 - 28 | M8-M10 | 20 x 1.5 | 0.06 |
| S32-35Z | 32 - 35 | M8-M10 | 20 x 1.5 | 0.07 |
| S40-46Z | 40 - 46 | M8-M10 | 20 x 1.5 | 0.08 |
| S48-53Z | 48 - 53 | M8-M10 | 20 x 1.5 | 0.10 |
| S54-58Z | 54 - 58 | M8-M10 | 20 x 1.5 | 0.11 |
| S59-62Z | 59 - 62 | M8-M10 | 20 x 1.5 | 0.11 |
| S63-67Z | 63 - 67 | M8-M10 | 20 x 2.0 | 0.13 |
| S70-73Z | 70 - 73 | M8-M10 | 20 x 2.0 | 0.13 |
| S74-80Z | 74 - 80 | M8-M10 | 20 x 2.0 | 0.14 |
| S83-91Z | 83 - 91 | M8-M10 | 20 x 2.0 | 0.15 |
| S101-106Z | 101 - 106 | M8-M10 | 20 x 2.0 | 0.24 |
| S108-114Z | 108 - 114 | M8-M10 | 20 x 2.0 | 0.25 |
