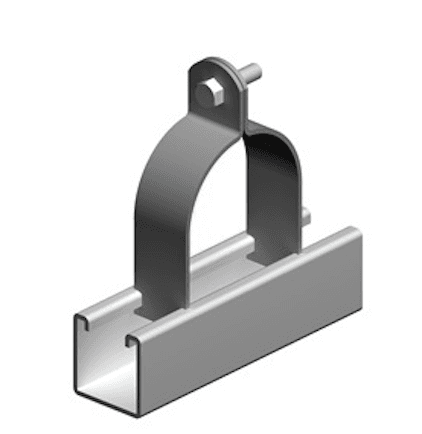

SS316 2 Piece Channel Pipe Clip
| Material | : Stainless Steel |
| Finish | : SS316 |
| Part Number | Pipe OD (mm) | Width x Thickness (mm) | Weight (kg) |
|---|
| S5-015S | 15 | 32 x 1.6 | 0.04 |
| S5-019S | 19 | 32 x 1.6 | 0.05 |
| S5-021S | 21 | 32 x 1.6 | 0.05 |
| S5-025S | 25 | 32 x 1.6 | 0.05 |
| S5-028S | 28 | 32 x 2.0 | 0.07 |
| S5-032S | 32 | 32 x 2.0 | 0.08 |
| S5-035S | 35 | 32 x 2.0 | 0.08 |
| S5-037S | 37 | 32 x 2.0 | 0.09 |
| S5-038S | 38 | 32 x 2.0 | 0.09 |
| S5-042S | 42 | 32 x 2.0 | 0.09 |
| S5-048S | 48 | 32 x 2.5 | 0.11 |
| S5-051S | 51 | 32 x 2.5 | 0.12 |
| S5-054S | 54 | 32 x 2.5 | 0.13 |
| S5-064S | 64 | 32 x 2.5 | 0.14 |
| S5-070S | 70 | 32 x 2.5 | 0.15 |
| S5-076S | 76 | 32 x 2.5 | 0.16 |
| S5-089S | 89 | 32 x 2.5 | 0.19 |
| S5-108S | 108 | 32 x 2.5 | 0.22 |
| S5-114S | 114 | 32 x 2.5 | 0.23 |
| S5-140S | 140 | 32 x 2.5 | 0.27 |
| S5-168S | 168 | 32 x 2.5 | 0.31 |
| S5-203S | 203 | 32 x 2.5 | 0.38 |
