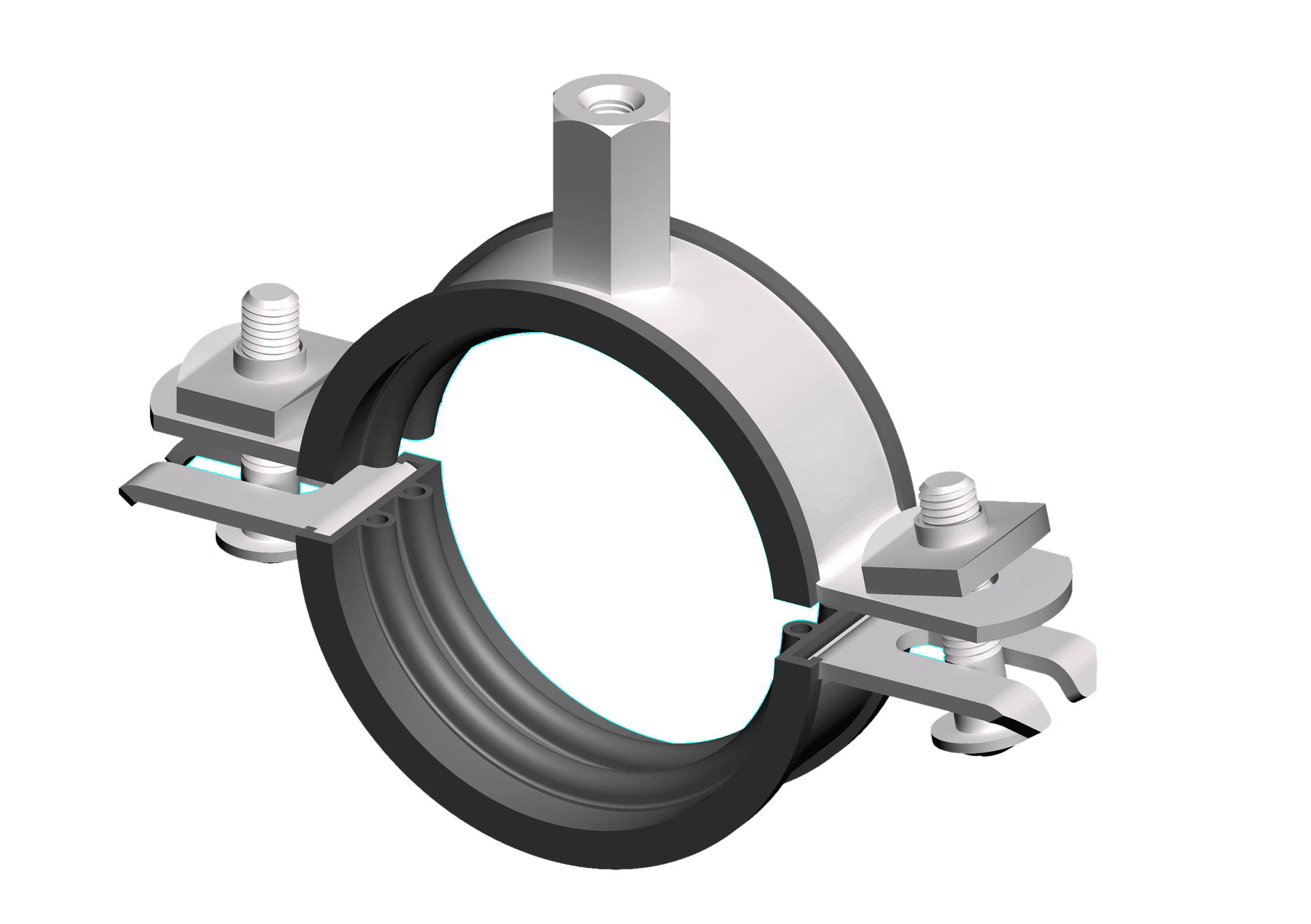

Double Bolted Acoustic Clamp
| Material | : Mild Steel |
| Rubber | : EPDM |
| Finish | : Zinc |
| Part Number | Pipe OD (mm) | Nut Size | Width x Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| S125Z | 125 | M8-M10 | 23 x 2.5 | 0.30 |
| S131-135Z | 131 - 135 | M8-M10 | 23 x 2.5 | 0.32 |
| S136-139Z | 136 - 139 | M8-M10 | 23 x 2.5 | 0.33 |
| S140-144Z | 140 - 144 | M8-M10 | 23 x 2.5 | 0.34 |
| S159-163Z | 159 - 163 | M8-M10 | 23 x 2.5 | 0.37 |
| S165-169Z | 165 - 169 | M8-M10 | 23 x 2.5 | 0.38 |
